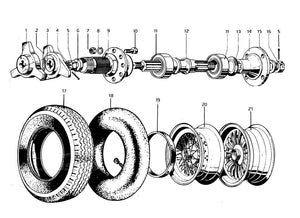

Ferrari 275 GTB/GTS 2- Tyres - Wheels & Shaft Parts Diagram
Ferrari 275 GTB/GTS 2- Tyres - Wheels & Shaft Parts Diagram
| No. | Part | Name | Price | Re. | Availability |
|---|---|---|---|---|---|
| 1 | 95700039 |
Wheel spinner LH
Campagnolo 38mm
|
€POA | 1 | Enquire |
| 1 | 95700040 |
Wheel spinner RH
Campagnolo 38mm
|
€POA | 1 | Enquire |
| 3 |
|
CALOTTINO TIPO 32 Ferrari BORRANI | €POA | 4 | Enquire |
| 4 | 10723021 | RH Thread Castellated N | €45,90 | 1 | Enquire |
| 4 | 101223 |
|
€65,79 | 1 | Enquire |
| 5 | 10734101 |
|
€1,78 | 1 | Enquire |
| 6 | 94971 |
Washer |
€32,30 | 1 | Enquire |
| 7 | 103181 | Nut 8x1 | €2,89 | 1 | Enquire |
| 8 | 127496 |
Washer
|
€0,92 | 1 | Enquire |
| 9 | 700134 |
RH Rear Hub
|
€POA | 1 | Enquire |
| 9 | 700135 | LH Rear Hub | €POA | 1 | Enquire |
| 10 | 680006 | Rear Disc Bolt | €20,30 | 1 | Enquire |
| 11 |
101220
|
Rear Hub Bearing | €56,30 | 2 | Enquire |
| 12 | 700138 | RH Rear Shaft | €POA | 1 | Enquire |
| 12 | 700139 | LH Rear Shaft | €POA | 1 | Enquire |
| 13 | 101216 |
Dust Cover
|
€175,18 | 1 | Enquire |
| 13 | 2461882007 | RH front stone guard | €POA | 1 | Enquire |
| 14 | 580003 | Flange | €112,40 | 1 | Enquire |
| 15 | 95930502 |
Lock Washer |
€POA | 1 | Enquire |
| 16 | 94944 |
Castellated RH Rear Hub nut |
€55,00 | 1 | Enquire |
| 16 | 94945 |
Castellated RH Rear Hub nut |
€55,00 | 1 | Enquire |
| 20 | 95700005 | Borrani Wheel Rw3874 set | €POA | 4 | Enquire |
| 21 | 40336 | 61/2X14 Road Wheel set | €POA | 4 | Enquire |
